Integrated Radar Sensing Control Solutions
Full light on motion, dim when idle — microwave sensing plus automatic timer dimming cuts all-night full-power draw
Challenges
Lights burning all night, wasting power and draining batteries?
Need motion-triggered full-brightness lighting with dim-when-idle?
Dead zones in sensing — lights miss passing people or vehicles?
High standby consumption draining power even in daytime?
System Components
Solar PV panel (6V)
Integrated radar controller (microwave sensing + photocell + timer)
3.2V LiFePO4 battery
LED street/yard light (full on motion · dim when idle)
Recommended Products
High-Current (8A)
8A charging & discharge for mainstream street-light loads
Economy & Ultra-Low Power
4A/6A economy options and 66µA ultra-low-standby model
Timer / Dual-Color
Automatic timer dimming and color-temperature switching
Solution Highlights
- Full light on motion, dim when idle — with automatic timer dimming, cutting all-night full-power draw
- 5–8 m microwave sensing with 360° hemispherical coverage, no dead zones; 3–6 m mounting height
- Ultra-low standby: 18–30µA with mechanical switch off, or 66µA micro-power model
- Photocell + timer + IR remote multi-control; discharge curves via engineering remote
- 3.2V single-cell LiFePO4, no battery protection board needed; compact 65×20mm board fits into light bodies
Selection Guide

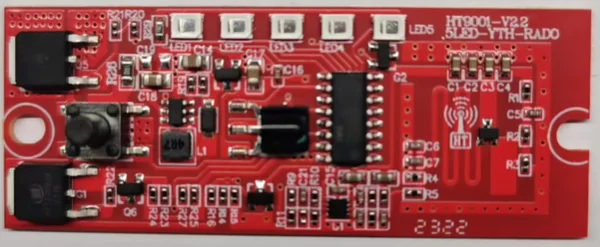

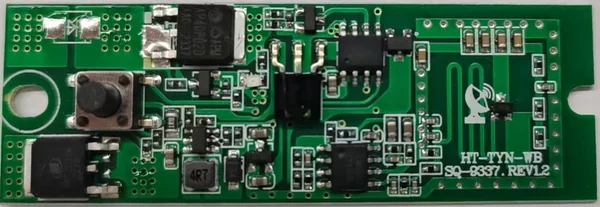

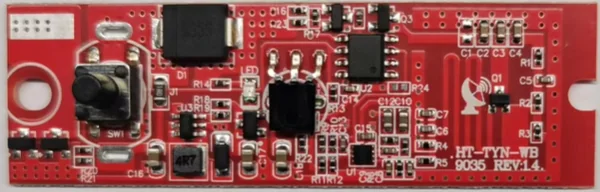

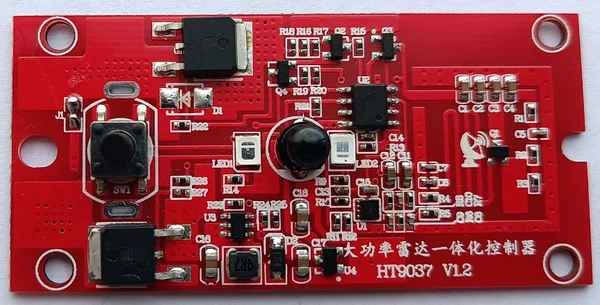

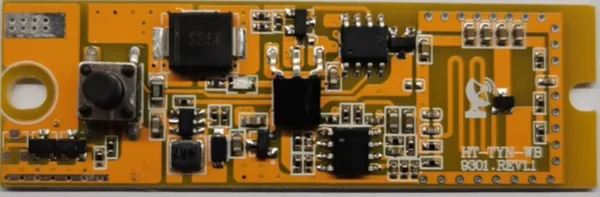

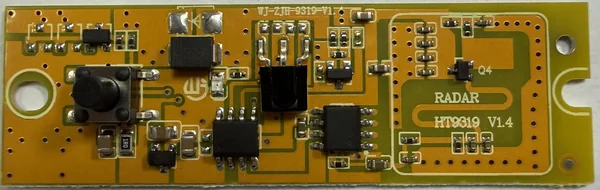

Size by load: 8A → 9001/9337/9037; 4–6A → 9035/9301L; ultra-low power → 9319

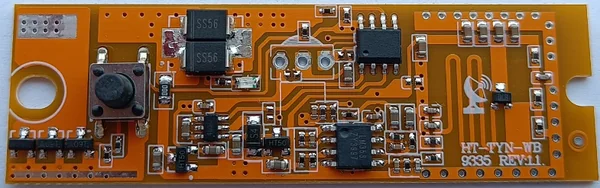

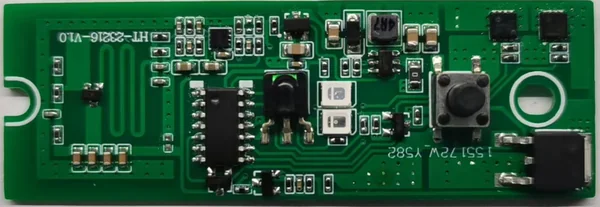

Timer dimming → 9335; dual color temperature → 23216
Sensing range 5–8 m (varies with height); mounting at 3–6 m per site conditions
All models run on 3.2V single-cell LiFePO4 with 6V PV panels — check charging current in the spec table
