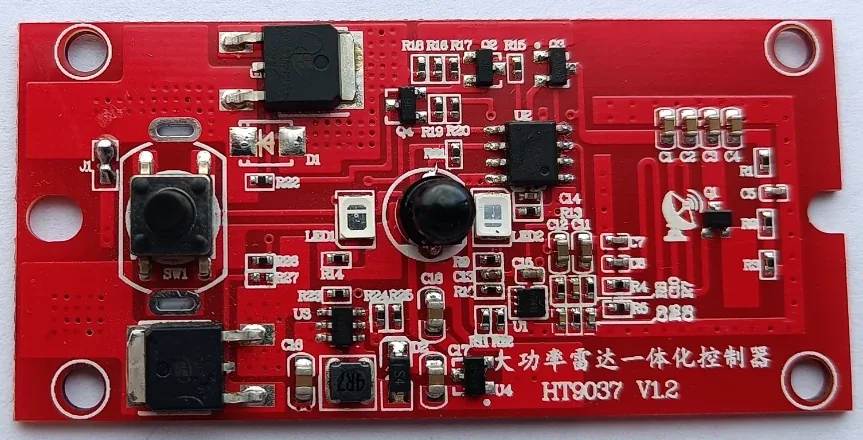

9037Integrated Radar Controllers
Integrated Radar Controllers
High-power integrated radar controller with 6–8 m 360° microwave sensing, up to 8A load and automatic timer dimming.
Product Features
- Microwave sensing with 5–8 m detection range (5 m mounting height), 360° hemispherical coverage with no blind spots
- 3.2V integrated design, industrial-grade MCU all-digital technology, strong anti-interference
- Automatic timer dimming: linear dimming to 20% brightness over 0–6 hours after light-on, saving energy
- Software anti-interference mechanism prevents interference between adjacent lights
- IR remote interface ready: constant-on / radar / 2H / 3H / 4H / AUTO modes
- Standby current under 300 µA — ultra-low power consumption
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Max charging current | 8A | Standby consumption | |||
| Standby consumption | <300µA | ||||
| Input voltage | 2.5–4.2V | Operating current | |||
| Operating current | 12–16mA | ||||
| Max discharge current | 8A | ||||
| Sensing & Control | Sensing & Control | ||||
| Sensing distance | 6–8 m (5 m mounting height) | Sensing angle | |||
| Sensing angle | 360° hemisphere | ||||
| Trigger hold time | 10 s | Trigger illuminance | |||
| Trigger illuminance | <5–10 lux | ||||
| Standby duty cycle | 10% | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 65×20×1.2 mm | ||||
