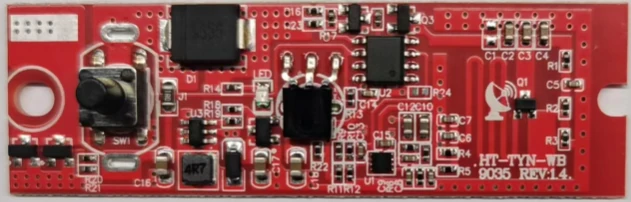

9035Integrated Radar Controllers

Name: 9035 Integrated Radar Controllers
Brand: Shengqi
SKU: 9035

Integrated Radar Controllers

Integrated radar controller with 7–8 m sensing — 4A charging, 6A discharge, automatic light control, remote-adjustable dimming.

Inquire About This Model ↓ Download Spec

Product Features

3.2V integrated design for single-cell LiFePO4 systems
Microwave radar sensing — full light on motion, off or dim when still
Automatic light control — lights on at dusk, charging at dawn
Ultra-low standby power consumption
Industrial-grade MCU all-digital technology, strong anti-interference

Technical Specifications

Technical Specifications
Electrical		Electrical
Max charging current	4A	Standby consumption	300/500/600µA
Standby consumption	300/500/600µA
Input voltage	2.5/3.2/4.2V	Operating current	1.5–16mA
Operating current	1.5–16mA
Max discharge current	6A
Sensing & Control		Sensing & Control
Mounting height	3/4/6 m	Sensing radius	7–8 m (varies with height)
Sensing radius	7–8 m (varies with height)
Mechanical & Others		Mechanical & Others
Dimensions	65×20×1.2 mm
