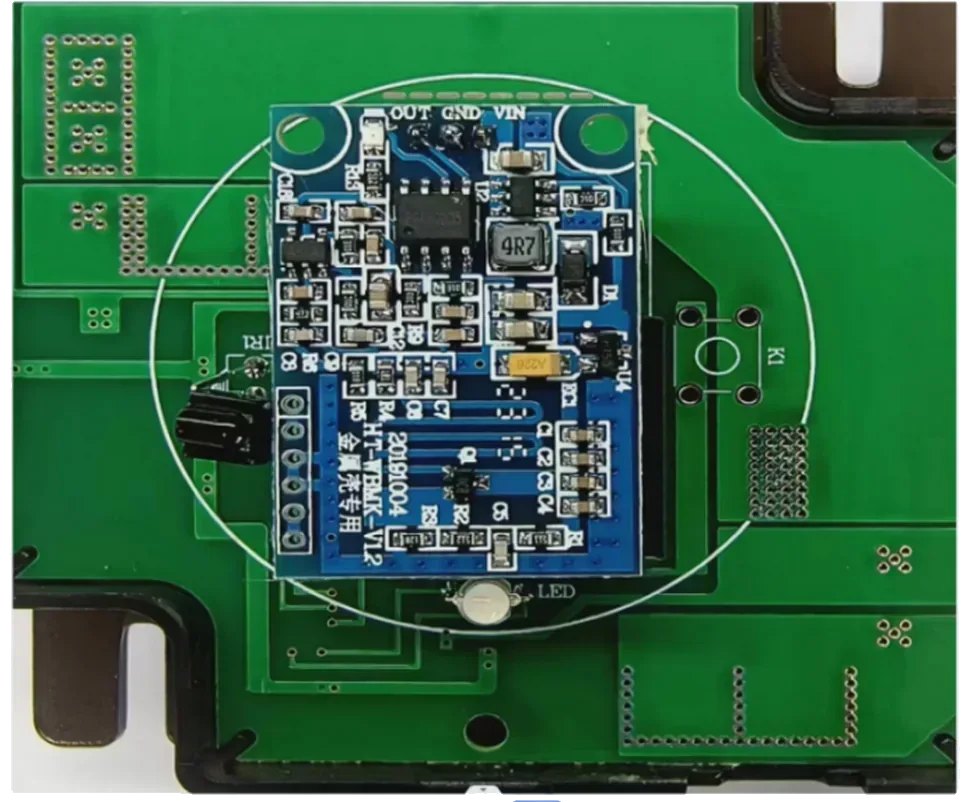

SQ-9034Timer Controllers
Timer Controllers
Aluminum-profile flat-voltage controller with external IR remote & radar module, 1–19 level remote dimming, 7–8 m sensing — ideal for profile-lamp solar lighting.
Product Features
- External IR head enables long-range remote control over 7 m with multiple programmable functions
- Remote dimming with adjustable current levels 1–19
- External radar module supported — 7–8 m sensing range with no blind spots
- Auto radar mode at low voltage (below 2.9V) to conserve battery
- Mechanical switch: full sleep when off, standby consumption as low as 18–30µA
- Remote settings remembered and restored after power loss
- Charge status LED: red blinking while charging, solid green when full
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Max charging current | 16A | Standby consumption | |||
| Standby consumption | 300–600µA (switch on) · 18–30µA (switch off) | ||||
| Battery type | LiFePO4 | Input voltage | |||
| Input voltage | 2.5/3.2/4.2V | ||||
| Operating current | 1.5–16mA | Max discharge current | |||
| Max discharge current | 8A (remote adjustable) | ||||
| Sensing & Control | Sensing & Control | ||||
| Mounting height | 3/4/6 m | Sensing radius | |||
| Sensing radius | 7–8 m (varies with height) | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 70×70×1.0 mm | ||||
