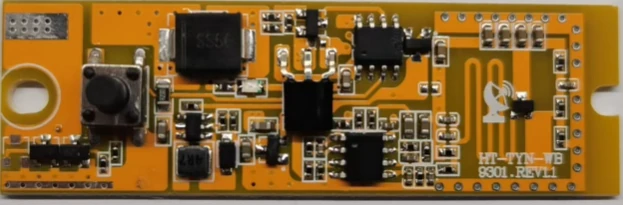

9301LIntegrated Radar Controllers
Integrated Radar Controllers
Integrated radar controller with 5–8 m sensing — 4A charging, 6A discharge, low standby consumption, automatic light control.
Product Features
- 3.2V integrated design for single-cell LiFePO4 systems
- Microwave radar sensing — full light on motion, off or dim when still
- Automatic light control — lights on at dusk, charging at dawn
- Ultra-low standby power consumption
- Industrial-grade MCU all-digital technology, strong anti-interference
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Max charging current | 4A | Standby consumption | |||
| Standby consumption | 300/600µA | ||||
| Input voltage | 2.5/3.2/4.2V | Operating current | |||
| Operating current | 1.5–16mA | ||||
| Max discharge current | 6A | ||||
| Sensing & Control | Sensing & Control | ||||
| Mounting height | 3/4/6 m | Sensing radius | |||
| Sensing radius | 5–8 m (varies with height) | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 65×20×1.2 mm | ||||
