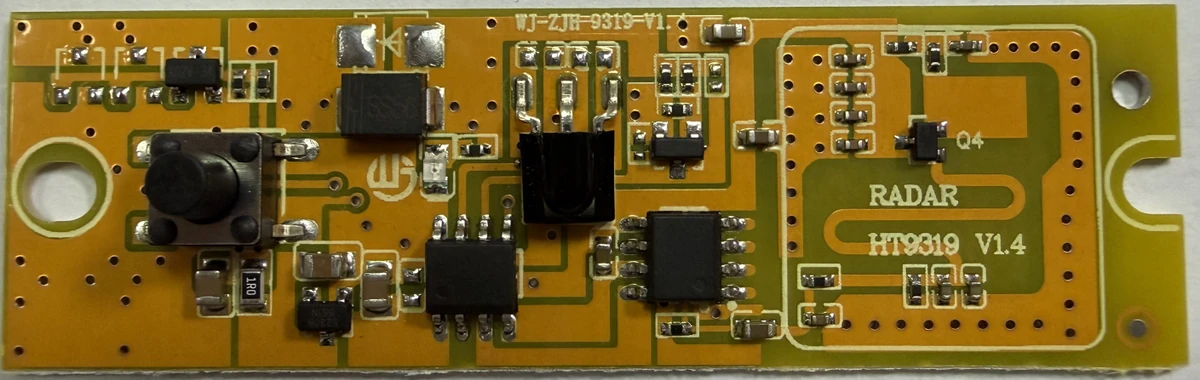

9319Integrated Radar Controllers

Integrated Radar Controllers

Integrated radar controller with 5–8 m sensing — standby down to 66µA, ultra-low power, 2–4A charging / 2–6A discharge.

Inquire About This Model ↓ Download Spec

Product Features

3.2V integrated design for single-cell LiFePO4 systems
Microwave radar sensing — full light on motion, off or dim when still
Automatic light control — lights on at dusk, charging at dawn
Ultra-low standby power consumption
Industrial-grade MCU all-digital technology, strong anti-interference

Technical Specifications

Technical Specifications
Electrical		Electrical
Max charging current	2–4A	Standby consumption	66/66/840µA
Standby consumption	66/66/840µA
Input voltage	2.5/3.2/4.2V	Operating current	1.0–2.7mA
Operating current	1.0–2.7mA
Max discharge current	2–6A
Sensing & Control		Sensing & Control
Mounting height	3/4/6 m	Sensing radius	5–8 m (varies with height)
Sensing radius	5–8 m (varies with height)
Mechanical & Others		Mechanical & Others
Dimensions	20.3×65.3×1.0 mm
