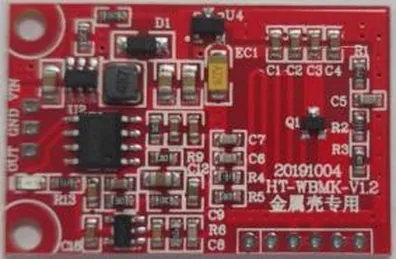

HT-WBMK-V1.2Sensor Modules
Sensor Modules
Microwave sensing module with boosted 5V output, 6–8 m sensing radius and 360° hemispherical coverage — designed for metal-shell fixtures.
Product Features
- Microwave sensing module with 6–8 m radius and 360° hemisphere coverage
- Battery input 2.5–4.2V with boosted stable 5V output
- Repeatable triggering, 10 s high-level hold (LED blink as trigger signal)
- MCU software anti-interference — no mutual interference between adjacent lamps
- Simple wiring: VIN to battery positive, GND to negative, OUT outputs 5V
- Installation note: no metal covering on the module front; keep metal away from base and sides
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Output voltage | 5V | Input voltage | |||
| Input voltage | 2.5–4.2V | ||||
| Operating current | 12–16mA | Operating frequency | |||
| Operating frequency | 2.9–3.2 GHz | ||||
| Sensing & Control | Sensing & Control | ||||
| Sensing distance | 6–8 m radius (open area, 6 m mounting height) | Sensing angle | |||
| Sensing angle | 360° hemisphere | ||||
| Trigger hold time | 10 s | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 35.2×23 mm | ||||
