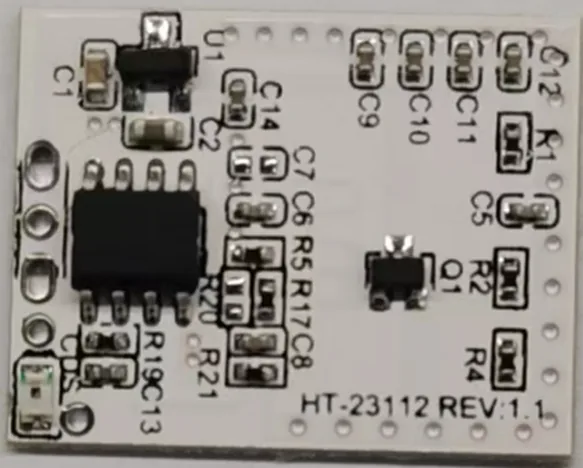

HT-23112Sensor Modules
Sensor Modules
Indoor radar module with 5 m sensing range and 150° angle, 30-second hold time, low power.
Product Features
- Indoor radar module with 5 m typical sensing range
- 150° sensing angle for wide coverage
- 30-second trigger hold, repeatable triggering
- 10V typical input, low-power design
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Input voltage | 5/10/12V | Operating current | |||
| Operating current | 1.5mA | ||||
| Sensing & Control | Sensing & Control | ||||
| Sensing distance | 4/5/6 m | Sensing angle | |||
| Sensing angle | 150° | ||||
| Trigger hold time | 27/30/33 s | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 17.9×22.85×1.0 mm | ||||
