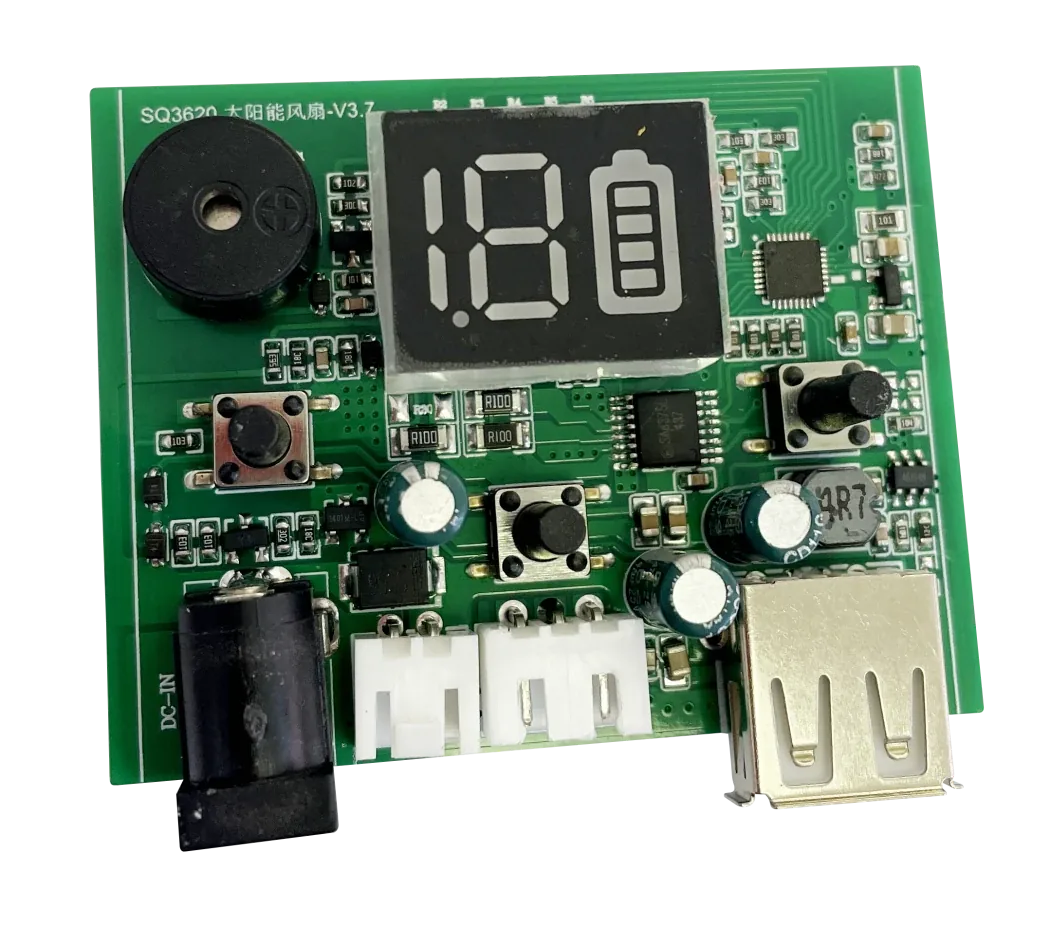

SQ-3620Fan Controllers
Solar Fans
Solar stand fan with FOC three-phase brushless motor, solar/adapter dual charging, digital battery & level display, 5V/2A USB output and adjustable speed.
Product Features
- FOC three-phase brushless motor drive — high efficiency, low noise, smooth operation
- Simple system designed for standard stand-fan tooling
- Solar / adapter charging
- Digital display for battery level and fan speed
- Adjustable wind speed and rotation speed
- USB output 5V/2A
- Customizable motor options
- Customizable functions
Technical Specifications
| Electrical | Electrical | ||||
|---|---|---|---|---|---|
| Max charging current | 2A | Battery type | |||
| Battery type | Lithium battery (11.1V) | ||||
| System voltage | 9/11.1/12.6V | Charging voltage range | |||
| Charging voltage range | 13.5/15/18V | ||||
| USB output | 5V/2A | ||||
| Mechanical & Others | Mechanical & Others | ||||
| Dimensions | 57.5×45×1.2 mm | Motor type | |||
| Motor type | FOC three-phase brushless motor | ||||
| Motor speed | 850/1100/1300 rpm | Wind speed | |||
| Wind speed | 3/4/5 m/s | ||||
| Motor power | 40W | ||||
